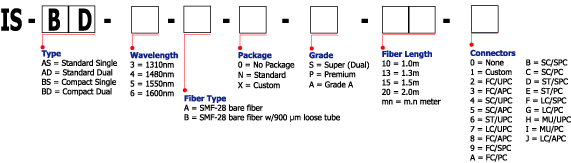

ISBD Series *

Super
Premium

Premium

Grade A

Operating Wavelength Range (nm)

1310/1480/1550/1600

Minimum  Isolation (wavelength ± 20nm, 23°C)

> 46 dB

> 46 dB

> 45 dB

Minimum  Isolation (wavelength ± 20nm, 0 ~ +70°C)

> 35 dB

> 35 dB

> 32 dB

Insertion Loss (wavelength ± 20nm, 23° C)

< 0.4 dB

< 0.4 dB

< 0.6 dB

Insertion Loss (wavelength ± 20nm, 0 ~ +70°C)

< 0.5 dB

< 0.6 dB

< 0.8 dB

Polarization Dependent Loss

< 0.1 dB

< 0.1 dB

< 0.15 dB

Polarization Mode Dispersion

< 0.05 ps

< 0.05 ps

< 0.05 ps

Optical Return Loss

> 60 dB

> 60 dB

> 55 dB

Maximum Optical Power

300 mW

Operating Temperature

0 ~ +70°C

Storage Temperature

-40 ~ +85°C

Fiber Type

Corning SMF-28

5 N

Package Design

Gold-Plated Stainless Steel Tube

Dimension

f = 4.30 mm, L = 27 mm
